Beehive scale for monitoring two beehives (SKU: BS022GEX)

  • 1x central unit for monitoring two beehives
  • 2x weight sensor
  • 1x solar cell for the power supply
  • 1x weather sensor for measuring weather data (temperature, humidity, air pressure)
  • Overview of data on the mobile app and on the web portal
  • With built-in SIM card with 1 year of data transfer.
  • Resistant to rain and other weather conditions

Features

Tägliche E-Mail mit den aktuellen Messungen

Tägliche E-Mail mit den aktuellen Messungen

Gewichtszunahme oder Gewichtsverlusts werden mit farblicher Ikone angezeigt für den schnellen und leichten Überblick. Jeden Morgen bekommen Sie eine neue E-Mail mit den aktuellen Daten .

2G Netzwerk

2G Netzwerk

Am weitesten verbreitete Mobilfunknetz mit Signalabdeckung auch an abgelegenen Orten.

Erweitbarkeit der Firmwareupdates

Externe Antenne

Zusätzliche Außenantenne für besseren Empfang des Mobilfunksignals. Geeignet für abgelegene Standorte in Wäldern und Hügeln usw.

Mobile app - quick access to the measurements

Mobile app - quick access to the measurements

The latest data is displayed on the smartphone. The mobile app is made as a progressive web app that works on all smartphones (Android, Apple), tablets and home computers.

Web portal - configuration of the scale and detailed analyzes

Web portal - configuration of the scale and detailed analysis

The web portal provides a detailed view of measurements from the scale. It is used also for the configuration of the beehive scales.

Hourly measurements - Always current data

Hourly measurements - Always current data

The measurements are taken every hour. You never have to wait for the data again.

The central unit sends the data to the server, where it is processed. The current measurements are available at any time via the mobile app and the web portal.

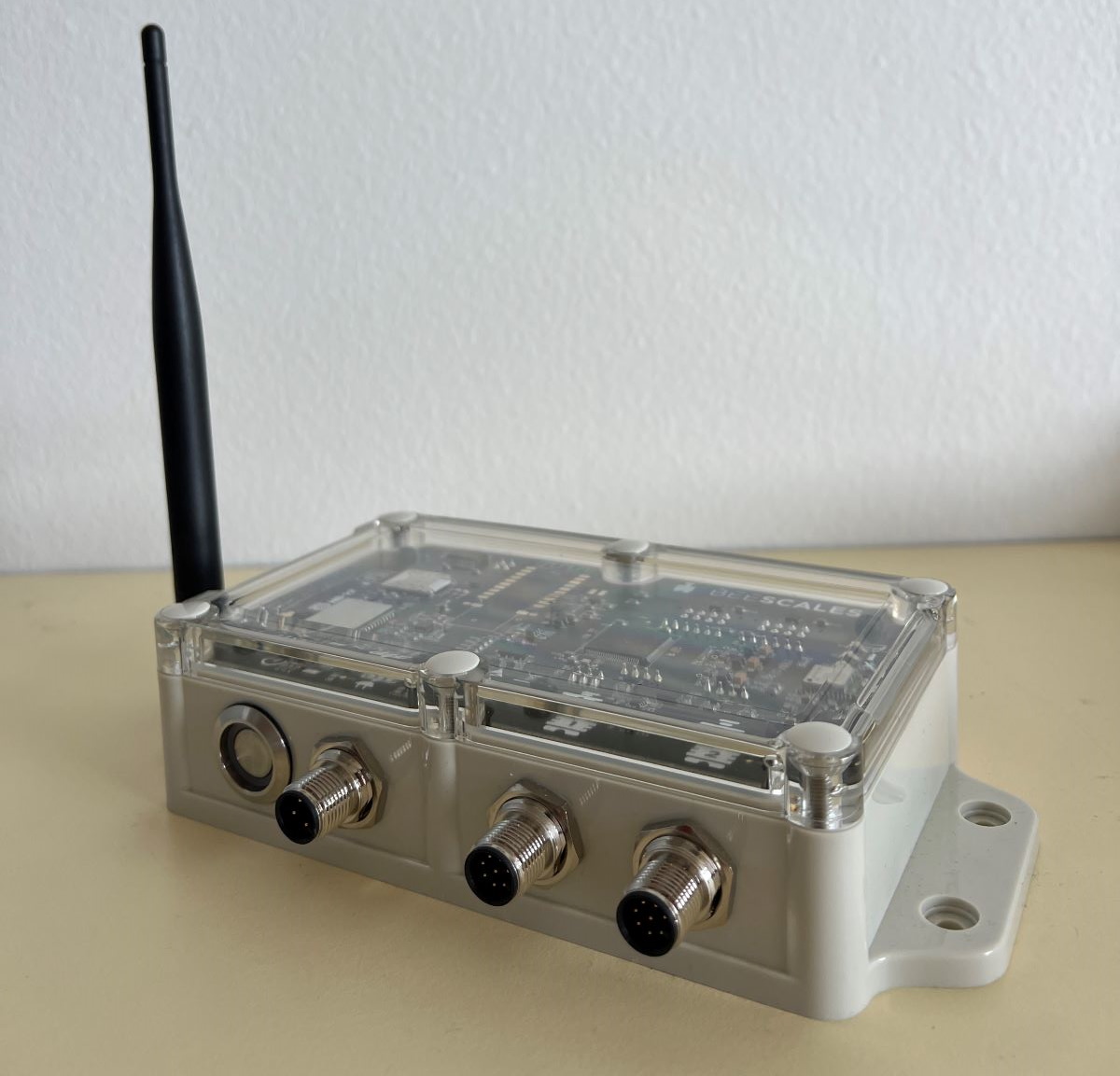

Central unit

Central unit

Central unit is the core of the system that enables data acquisition and transmission over the cellular network to the server.

The central unit is a minicomputer with an internet connection. Software runs on the scales and is constantly updated with new functions.

Easy commissioning

Easy commissioning

Just turn on the switch and the beehive scale will work.

The scales come with a built-in SIM card that takes care of data transfer. It works across Europe. You have no work with the configuration. Just unpack, assemble and switch on.

Weight sensors

Weight sensors

Are universal and therefore fit under any prey system. Dimensions of the weight sensors 45x5x3.8 cm. Made of high quality aluminum. The black surface is anodized and also formic and oxalic acid resistant. A 100 kg weight sensor with an accuracy of 20 g is built into each scale. They are connected to the central unit with a 3 m long cable. Have a low overall height of only 35 mm.

Individual calibration of the scale

Individual calibration of the scale

Each scale is individually calibrated to ensure the highest possible measurement accuracy.

The weight sensors are numbered and should be switched on at the places provided for on the central unit.

Weather sensor

Weather sensor

The beehive scale has a high-quality weather sensor from Bosch, which enables the measurement of temperature and air pressure. The weather sensor is built into a housing that enables easy assembly. It is recommended to install the housing in a shady place, e.g. under the beehive.

Solar cell

Solar cell

The beehive scale comes with a powerful solar cell. It charges the built-in Li-Po battery so that the beehive scale can function indefinitely. The solar cell is connected to the central unit with the supplied USB cable. The same cable can be also used for charging the central unit with a standard charger for cell phones.

Built-in SIM

Built-in SIM

The built-in SIM card is from A1, data transmission is guaranteed throughout Europe. Is specially configured for M2M (machine to machine) communication. The SIM card is managed by us, so you do not have to worry about topping up any costs.

Annual flat rate

Annual flat rate

We charge an annual flat rate of 49 € for the use of the SIM card, data transfer and use of the web portal. The annual flat rate for the first year is free.

Using the scale with your own SIM card is free. You have no fees for using the scale, the webportal and the mobile app.

View the data on TV

View the data on TV

The beehive scale measurements can also be viewed on the TV screen. This option is particularly suitable for beekeepers and institutions that want to bring their bees closer to customers in the shop and in other business premises.

Publication of measurements on websites

Publication of measurements on websites

The measurements from the beehive scale can also be published on the beekeeper's website. This works with the help of "web widgets" that can be easily implemented on the website.

Tara Einstellung

Tare setting - setting the desired weight

It is possible to set the desired weight of the beehive yourself via the web portal. Some beekeepers use it to set the weight of an empty beehive to 0 kg. However, you can also use this feature to reset the weight changes that occurred as a result of adding an extra load.

Beekeeping mode

"Beekeeping mode" - pause data collection

While working with the bees, you can simply deactivate the data measurements via the mobile app. When you have finished work, turn the beehive scale back on via the mobile app. In this way you can prevent weight changes that come from working with the bees from being recorded.

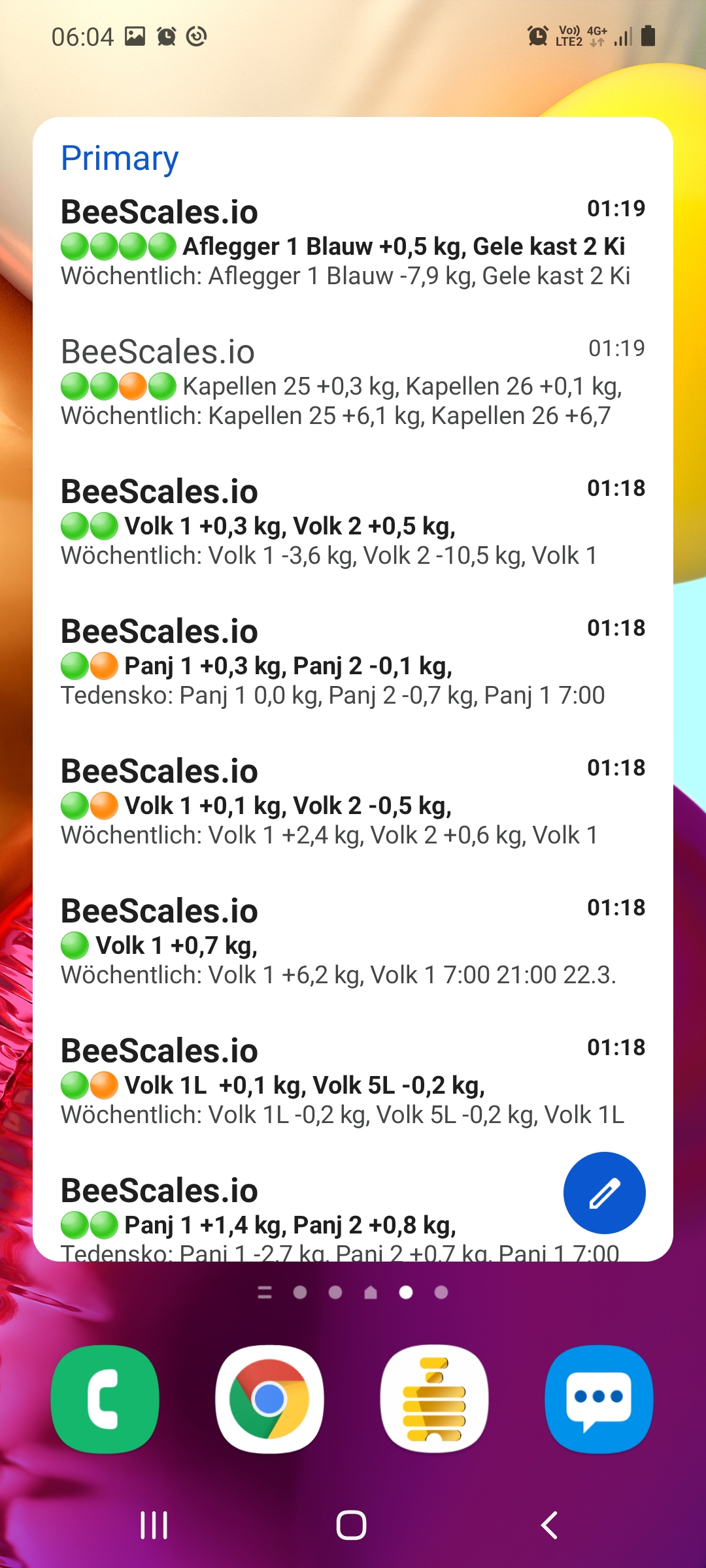

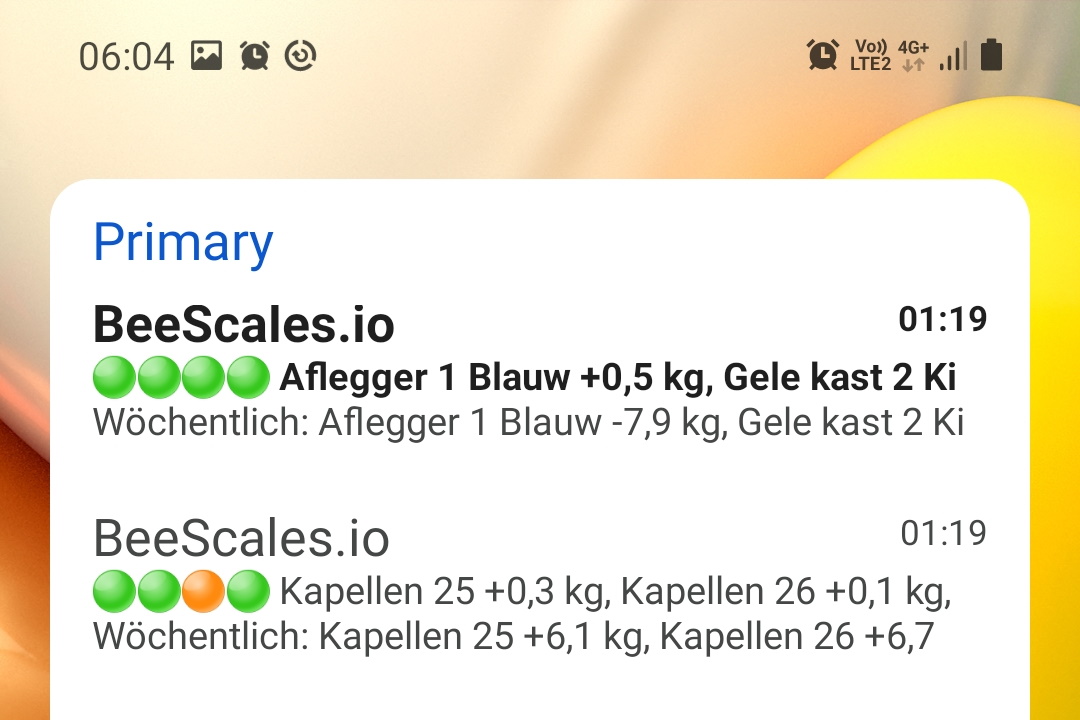

Receive daily measurements by email

Receive daily measurements by email

It is possible to set up the daily sending of e-mails with measurements of the scale. You can receive these emails yourself or your friends if you prefer.

Firmware updates can be expanded

Firmware updates

The firmware of the central unit can be updated with the new versions as they been developed. This can be done simply by connecting the central unit to a PC with the included USB cable and running our diagnostic program

Weatherproof

Weatherproof

Central unit has a waterproof electronics housing (protection class IP66). The scales work in the sun, rain and snow. You just have to make sure that the weather sensor is in the shade and not in the rain.

Li-Po battery

Li-Po battery

Built in is a long-life Li-Po battery with a capacity of 1800 mAh, which, in combination with the solar cell supplied, enables unlimited operation of the scale all year round.

USB port for universal connectivity

USB port for universal connectivity

The included USB cable is used to connect the central unit to the power source or to connect the central unit to the computer.

Powered by a USB charger

Powered by a USB charger

The scale can also be charged with a standard phone charger that has a USB-A connector. This option is suitable for quick charging of the built-in battery of the central unit. But you can also supply the balance directly with the USB charger instead of with the solar cell.

Possibility of fastening with screws

Possibility of fastening with screws

The central unit and the weight sensors can be attached to the base with screws. This prevents the scale from being easily carried away.

Locating the scale using the built-in SIM card

Locating the scale using the built-in SIM card

The scale is connected to the GSM network. This connection can be used to roughly locate and track the scale.

GPS module

GPS module

The central unit has a built-in GPS receiver for precise localization. You can always check the last location of the beehive scale.

Theft protection

Theft protection

The beehive scale has a built-in motion sensor. With this sensor it detects even the smallest movements and vibrations of the scales. If it detects that someone is moving or trying to remove the scales, it alerts the beekeeper immediately. The scale sends its exact location, which it gets with the help of the built-in sensor.
